Automatic Air is a proud Trane Comfort Specialist

Automatic Air is proud Louisville Trane dealer. Trane has been serving the heating and cooling needs of homes and businesses since 1913. Trane will continue to bring even more comfort, efficiency and innovation to their customers well into the future. Trane is a brand of Ingersoll Rand. Ingersoll Rand is a world leader in creating and sustaining safe, comfortable and efficient environments. Automatic Air Corporation consistently maintains a 99% national customer service satisfaction rating compared to other Trane Comfort Specialists nationwide, among the very highest in the country.

Air Conditioners / Heat Pumps

XR14

The single-stage XR14 heat pump offers up to 14.50 SEER/8.50 HSPF, available in 1.5-5 ton models, making it an energy-efficient choice for home comfort. This unit features a Spine Fin™ coil and a Climatuff® compressor to handle any outdoor climate conditions and prevent interior temperature swings.

Up To 14.50 SEER/8.50 HSPF

Climatuff® Compressor (stages): 1
100% Capacity Variability
71 – 76 Overall Sound Power Level [dB(A)]
Spine Fin™ Coil

XR16

The single stage XR16 heat pump offers up to 17.00 SEER/10.00 HSPF, available in 1.5 – 5 ton models, making it an energy-efficient choice for home comfort. This unit’s Spine Fin™ coil and a Climatuff® compressor can handle outdoor climate conditions and prevent interior temperature swings.

Up To 17.00 SEER/10.00 HSPF

Climatuff® Compressor (stages): 1
100% Capacity Variability
70 – 75 Overall Sound Power Level [dB(A)]
Spine Fin™ Coil

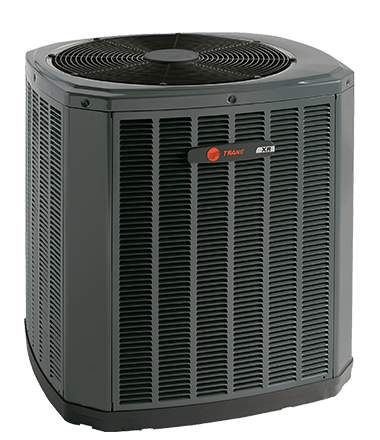

XR17

The two-stage XR17 heat pump offers up to 17.25 SEER/9.60 HSPF, available in 2, 3, 4 and 5-ton models, making it an energy-efficient choice for home comfort. This unit’s Spine Fin™ coil and a two-stage Climatuff® compressor handle any outdoor climate conditions and prevent interior temperature swings.

Up To 17.25 SEER/9.60 HSPF

Climatuff® Compressor (stages): 2
70/100% Capacity Variability
72 – 74 Overall Sound Power Level [dB(A)]
Spine Fin™ Coil

XL18i

The XL18i central air conditioner unit offers two-stage cooling and up to 18.00 SEER, available in 2-, 3-, 4-, and 5-ton models. This unit’s design features a swept fan blade, an all-aluminum Spine Fin™ coil, and a two-stage Climatuff® compressor, making it a durable and efficient choice for your home. A Weatherguard Top™, a unique design exclusive to Trane, protects the unit from the elements.

Up To 18.00 SEER

2, 3, 4 & 5 ton
Spine Fin™ Coil
Swept fan blade
2-stage Climatuff® compressor
ENERGY STAR® qualified

XV18

The XV18 TruComfort™ Variable Speed unit is one of the industry’s most efficient variable speed air conditioners, up to 18.00 SEER/13.00 EER, available in 2-, 3-, 4-, and 5-ton models. This unit features a woven Spine Fin™ coil, Climatuff® Variable Speed inverter compressor, and ComfortLink™ II capability. Even on the hottest days, it cools your home with precision, keeping you comfortable throughout the day.

Up To 18.00 SEER/13 EER

2, 3, 4 & 5 ton
Woven Spine Fin™ coil
Variable-speed fan motor
Swept fan blade
Compressor sound insulator
Climatuff® Variable Speed inverter compressor
ComfortLink™ II capability
Two-wire connections
ENERGY STAR® qualified

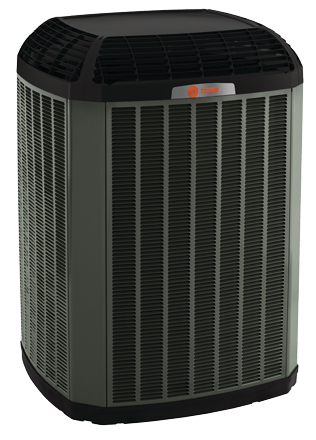

XV20i

The XV20i TruComfort™ variable speed heat pump system is one of the industry’s most efficient systems, with ratings up to 21.00 SEER/10.00 HSPF, available in 2-, 3-, 4- and 5-ton models. The Climatuff® variable speed inverter compressor runs at the exact speed needed to keep your home comfortable. Other key features include a woven Spine Fin™ coil, a swept fan blade, ComfortLink™ II capability, and a Weatherguard Top™, which is a unique design exclusive to Trane that protects the unit from the elements.

Up To 21.00 SEER/10.00 HSPF

ComfortLink™ II Capability
Climatuff® Compressor (stages): 750
25 – 100% Capacity Variability*
Compressor Sound Insulator
54 – 76 Overall Sound Power Level [dB(A)]
Spine Fin™ Coil
WeatherGuard™ top

*XV20i vary speed in 1/10 of 1% increments

Furnaces

S9V2

The S9V2 furnace is more efficient in both heating and cooling, offers quiet operation and maintains the DNA that Trane is known for: quality and reliability. The S9V2 has a variable speed ECM blower motor. The S9V2 is rated at 96% gas efficiency (AFUE) providing energy savings in both winter AND summer. With stainless steel primary and secondary heat exchangers you can count on a consistent flow of warm, comfortable air with quiet operation.

96% AFUE

Variable-speed ECM blower motor
Comfort-R™ mode
Two-speed inducer
40–120 mbth input
Two-stage heat
Dry contact Humidifier and EAC terminals
Fully insulated/gasketed
Standard 34″ height
IFC board with digital configuration, status and fault codes
Silicon nitride ignitor
Single or two pipe vent options
Certified to 1% air leakage
ENERGY STAR® qualified (Select models)

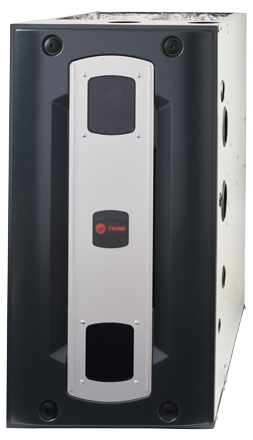

S9X2

The S9X2 furnace offers two stages of heat and a high-efficiency constant torque ECM blower motor for comfort in cold weather, while maintaining the DNA that Trane is known for: quality and reliability. The S9X2 is rated at 96% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

96% AFUE

High-efficiency 9 tap ECM constant torque blower mower
Two-speed inducer
Compatible with 2-stage OD equipment
40–120 mbth input
Two-stage heat
Dry contact Humidifier and EAC terminals
Fully insulated/gasketed
Standard 34″ height
IFC board with digital configuration, status and fault codes
Silicon nitride ignitor
Single or two pipe vent options
Certified to 1% air leakage
ENERGY STAR® qualified (Select models)

XC95M

Communicating technology in a fully modulating furnace for the ultimate comfort and greater efficiency. The advanced ComfortLink™ II allows the XC95m to constantly calibrate itself for optimal performance year after year. The XC95m is rated with up to 97.3% efficiency (AFUE) and select furnace models are Energy Star qualified. A variable-speed blower motor adjusts speed to provide a consistent flow of warm, comfortable air with quiet operation.

COMMUNICATING UP TO 97.3% AFUE

Variable-speed communicating ECM blower motor
Continuous Comfort-R™ mode
Variable-speed draft inducer
ComforLink™ II capability
60–120 mbth input
Fully modulating gas valve
Three-wire connections
Digital user interface for easy setup and diagnostics
Silicon nitride igniter
Single or two pipe vent options
Certified to 2% air leakage
ENERGY STAR® qualified (Select models)

S9X1

The S9X1 furnace offers a high-efficiency constant torque ECM blower motor for comfort in cold weather, while maintaining the DNA that Trane is known for: quality and reliability. The S9X1 is rated at up to 96% gas efficiency (AFUE), providing energy savings and a consistent flow of warm, comfortable air in both winter AND summer.

Up To96% AFUE

40 – 120 mbth input
Single-stage heat
High efficiency 9 tap Constant Torque ECM motor
Single-speed draft inducer
Silicon nitride igniter
Fully insulated/gasketed
Single or two pipe vent options
IFC board with digital configuration, status and fault codes
Certified to 1% air leakage
ENERGY STAR® qualified

Thermostats

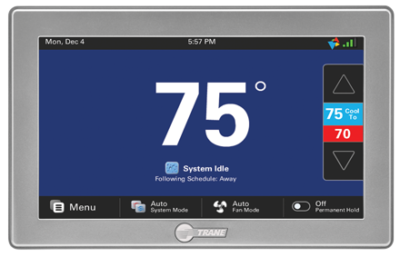

XL1050

The ComfortLink™ II XL1050 Zoning Control with built-in Nexia™ remote climate access combines zoning technology and a home automation hub to remotely control your home, comfort, and energy use. This control is 7-day programmable, with up to four schedules per day and five heat and two cool settings. In addition to a color display, it’s easily accessible from a smartphone, tablet or computer, which makes adjusting the temperature for your family’s comfort a breeze.

ComfortLink™ II communications
ComfortLink™ II zoning
Compatible with 24 volt systems
- – 5 heat / 2 cool
- – Remote ID, OD sensor connections
5 heat / 2 cool
Remote ID, OD sensor connections
Nexia™ Remote Climate Access included
Built in Nexia™ Z-Wave Bridge
Connect over 200 Z-Wave devices
Nexia™ Diagnostics ready
WiFi (802.11 b/g/n) or Ethernet connection
Control from a smartphone, tablet, or computer
7” diagonal color HD display
1-touch presets – Home, Away, Sleep
7-day programmable with up to four schedules per day
Customizable home screen
Runtime history
Allergy and quick clean air cycles
Smart continuous fan
Adjustable continuous airflow
Ventilation control
Service, filter, humidifier, UV light, air cleaner reminders
5-day weather forecast, weather radar, and alerts
Indoor relative humidity display
Test modes and alert diagnostics
Over the air or local software upgrade
BK Terminal for humidity control
Color: Designer Silver

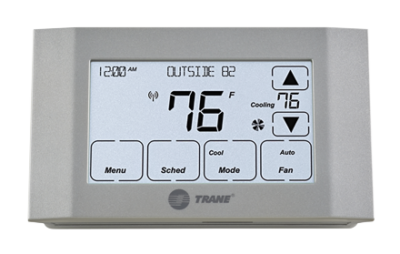

XR724

Trane XR724 Control features humidity sensor, filter service and maintenance reminder alerts, and allows you to manage your home comfort from anywhere with the most up-to-date tools available.

Nexia™ Remote Climate Access included
ComfortLink™ II communications
Wi-Fi Connectivity
4 heat / 2 cool
Z-Wave Connectivity
Nexia™ Diagnostics Ready
4.3” color display
2 aux dry contacts
Screen lock out and guest lock out
Built-in humidity sensor
Dehumidification setting
Dual fuel capable
Filter, maintenance and humidifier service reminder alerts
Color: Silver
